JOHNNY JOINT ROD END 2 1/2 INCH WELD-ON (74mm x 16mm Ball) EXTERNALLY GREASED EACH ROCKJOCK 4X4

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.

Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.

Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.

All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (up to 30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

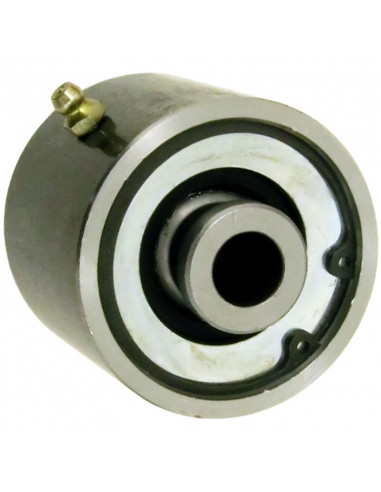

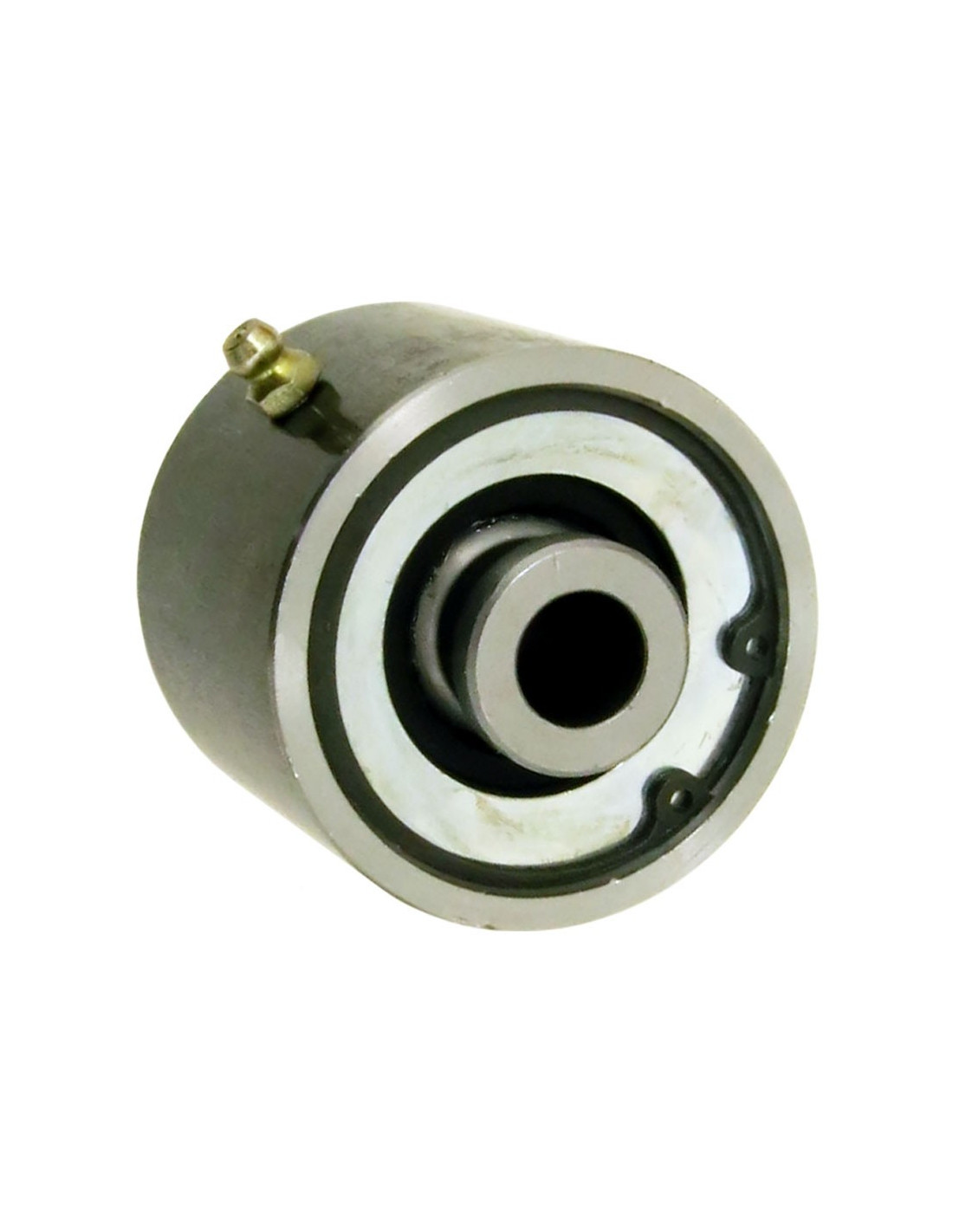

This 2 1/2 in. Johnny Joint incorporates our weld-on, standard width, steel outer barrel and a 74mm overall width x 16mm thru-bolt hole pivot ball.

Greasing is handled externally via the included zerk fitting that installs into the threaded hole in the joint outer barrel.

Rod End Fits:

Universal Application

21-up Bronco – R upper or lower control arm (frame end)

Rod End Includes:

(1) Weld-On Johnny Joint Assembly

Rod End Features:

34 degrees of articulation capability

Weldable steel construction

2 1/2 in. O.D. x 2 in. wide barrel dimensions

2-piece bushing internals

74mm wide x 16mm thru-hole pivot ball

1/4 in.-28 zerk fitting for greasing

Ships disassembled, ready for welding

Notes:

Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G

Applicable Johnny Joint tool for this rod end: CE-9110T

*** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!

Instruction Manual:

Johnny Joint Assembly / Disassembly

Parts List:

Weld-On Steel Outer Barrel:  CE-91101B

Internal Kit:  CE-9110RK

Pivot Ball:  RJ-348004-1

Zerk Fitting:  CE-1103K21
