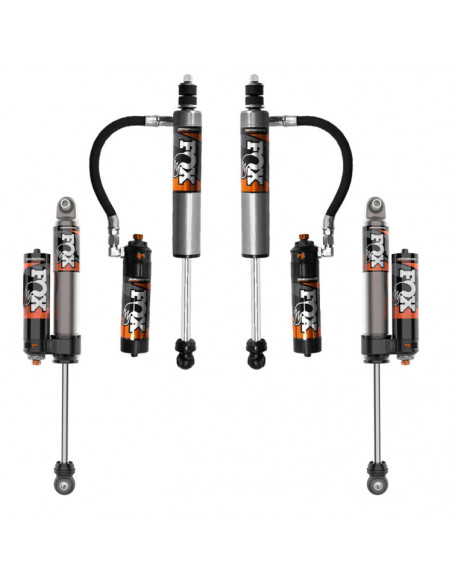

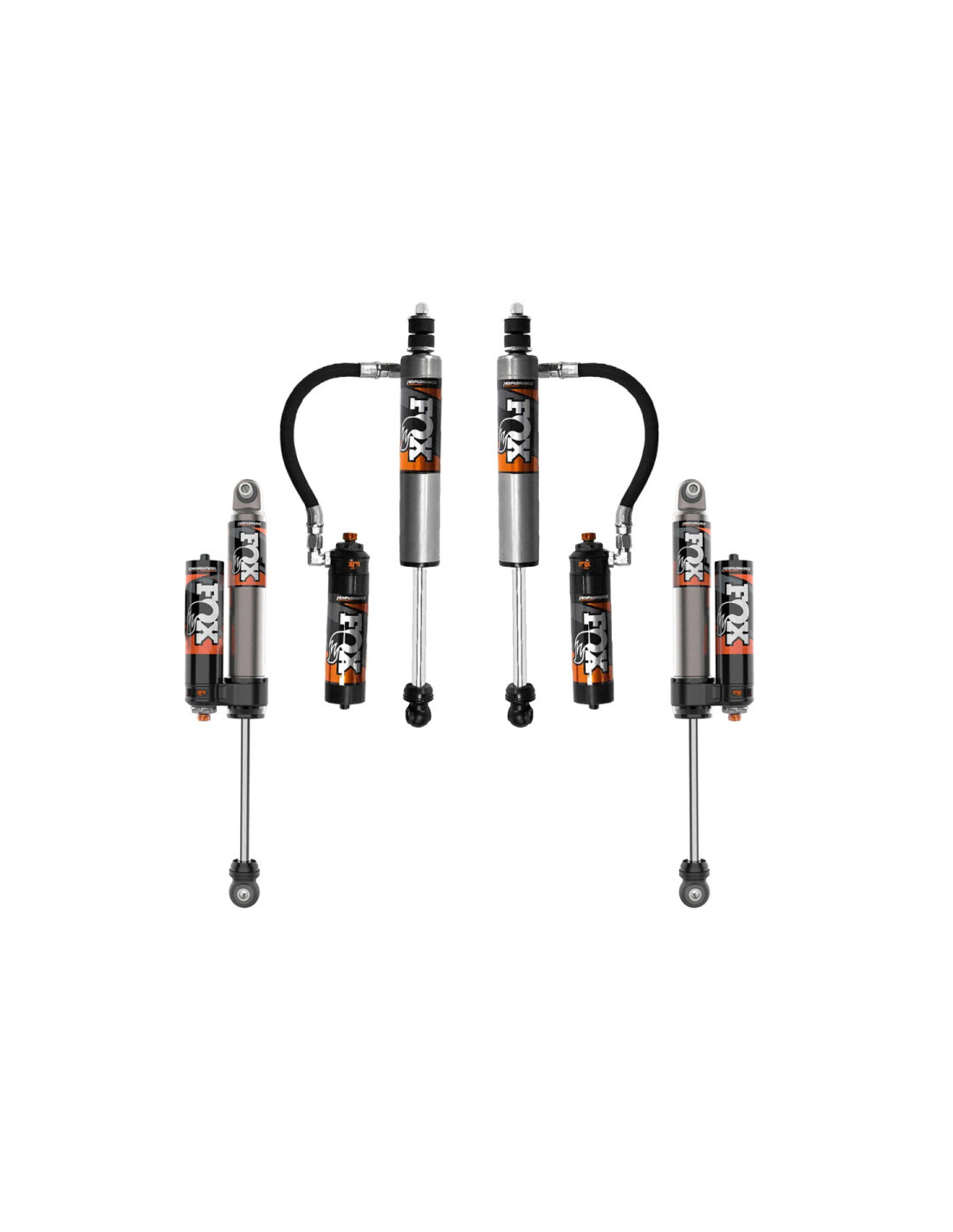

SET 4 FOX PERFORMANCE ELITE 2.5 ADJUSTABLE JEEP WRANGLER JK 0" to 2"

FOX PERFORMANCE ELITE 2.5 — Reservoir Shocks with DSC Adjuster

Upgrade your ride comfort

The Fox Performance Elite 2.5 Reservoir smooth-body shock kit delivers enhanced ride quality and the control you need the moment the pavement ends. Their design comes straight from FOX's off-road race shocks, refined in brutal conditions most vehicles will never face. FOX athletes push these components to the limit in competition, developing race-proven performance you can bolt straight onto your truck or SUV.

External reservoir

The external reservoir increases oil and nitrogen capacity, improving cooling and keeping performance consistent under the harshest conditions — while adding an unmistakable race look. Applications are available for most stock and lifted trucks and SUVs.

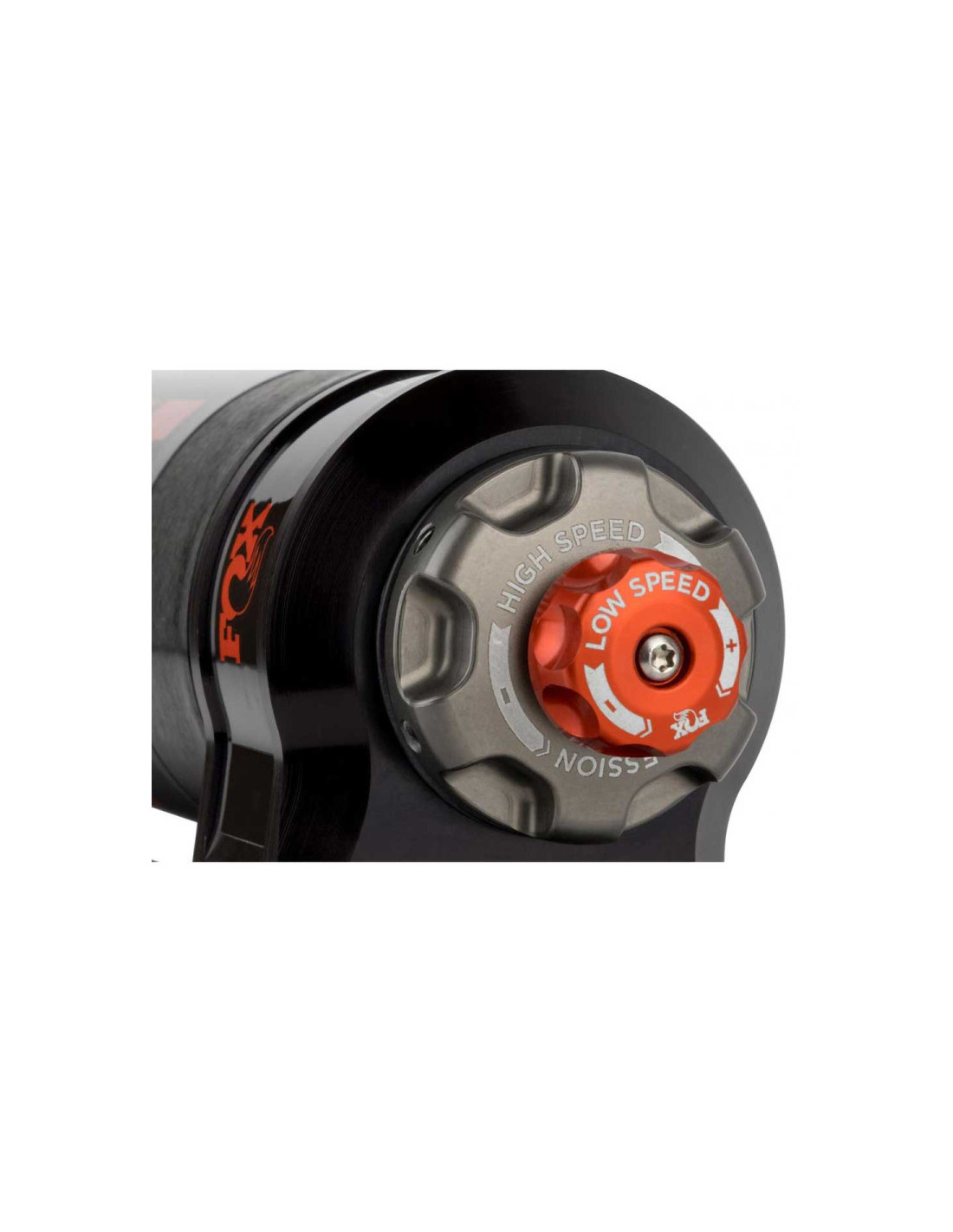

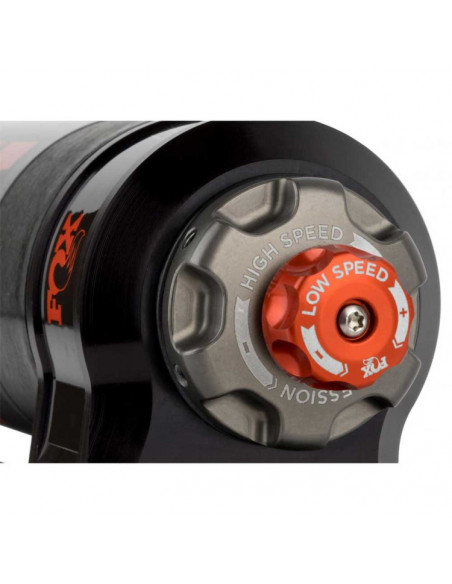

DSC (Dual Speed Compression) adjuster

The new DSC adjuster adds remarkable versatility and tuning precision. Two independent knobs for low- and high-speed compression let you dial the shock exactly to your liking: comfort on tarmac or firmness for demanding off-road use, tool-free and in seconds. The adjuster provides 10 low-speed and 12 high-speed compression settings.

Specs:

• DSC – Dual Speed Compression
• Body: 2.5" impact-extruded, CNC-machined 6061-T6 clear-anodized aluminum one-piece body, corrosion resistant over time
• Reservoir: 2.5" smooth-bore, honed seamless alloy reservoir
• Body plating: zinc-plated with double clear coat for a long-lasting finish
• Components: black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard-chrome-plated, heat-treated alloy steel
• Piston: race-developed high-flow piston design
• Seals: redundant sealing pack with main seal, wiper seal, and scraper seal
• Off-road-specific oil developed by FOX experts to perform in the toughest terrain and most demanding conditions
• Adjuster: DSC with 10 low-speed and 12 high-speed compression levels

In the box:

• (2) Front nitrogen shocks FOX Performance Elite 2.5 Reservoir Adjustable DSC, for 0-2" lift
• (2) Rear nitrogen shocks FOX Performance Elite 2.5 Reservoir Adjustable DSC, for 0-2" lift

Dimensions:

• Front:
  • Extended: 24.84"
  • Compressed: 15.36"
  • Travel: 9.48"
• Rear:
  • Extended: 24.96"
  • Compressed: 15.48"
  • Travel: 9.48"

Mounts:

• Front:
  • Top mount: stem
  • Bottom mount: eyelet
• Rear:
  • Top mount: bar pin
  • Bottom mount: eyelet

Notes:

• Fits both 2WD and 4WD models
• Includes reservoir bracket
