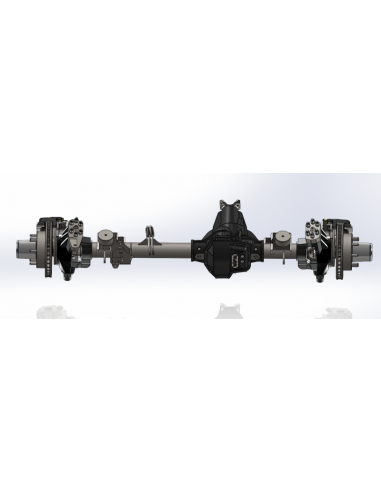

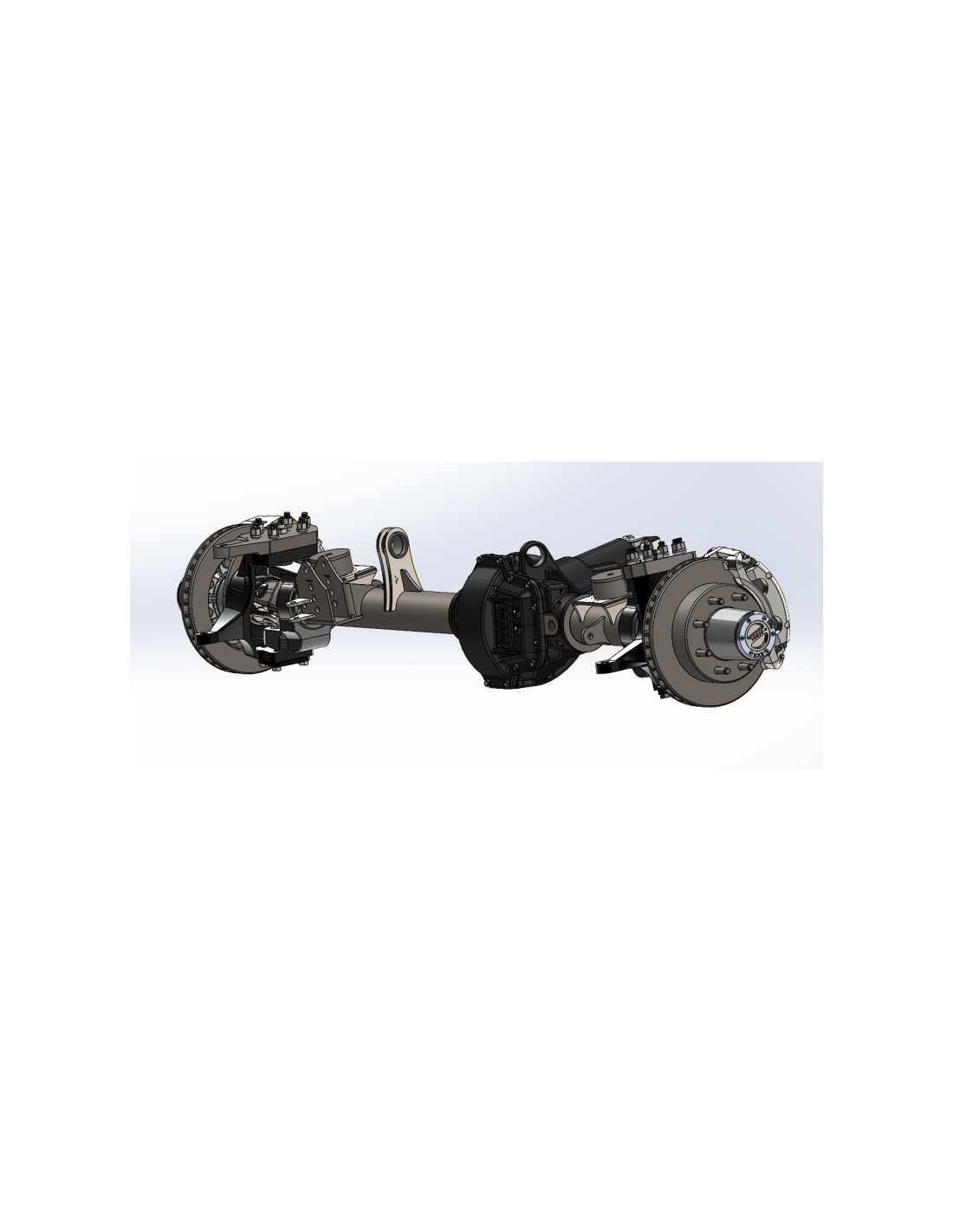

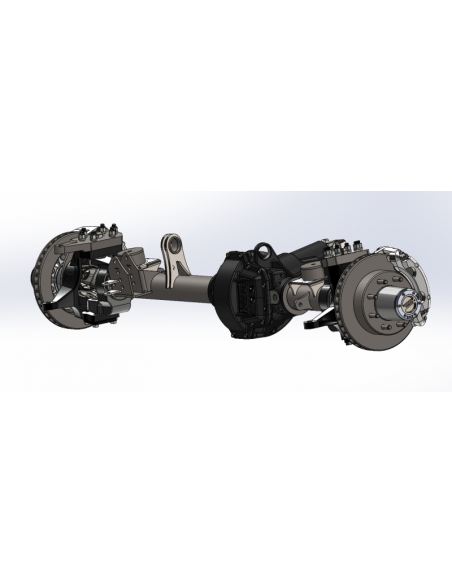

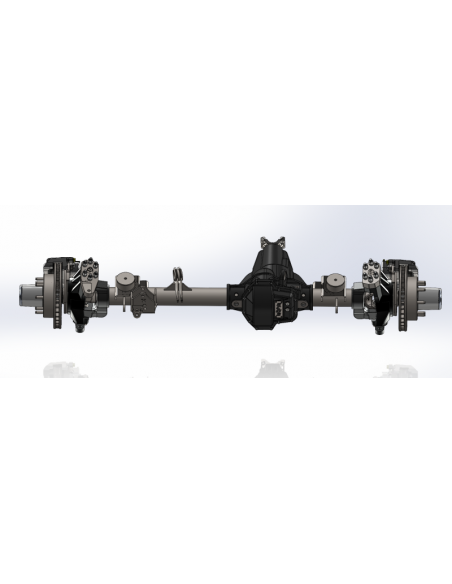

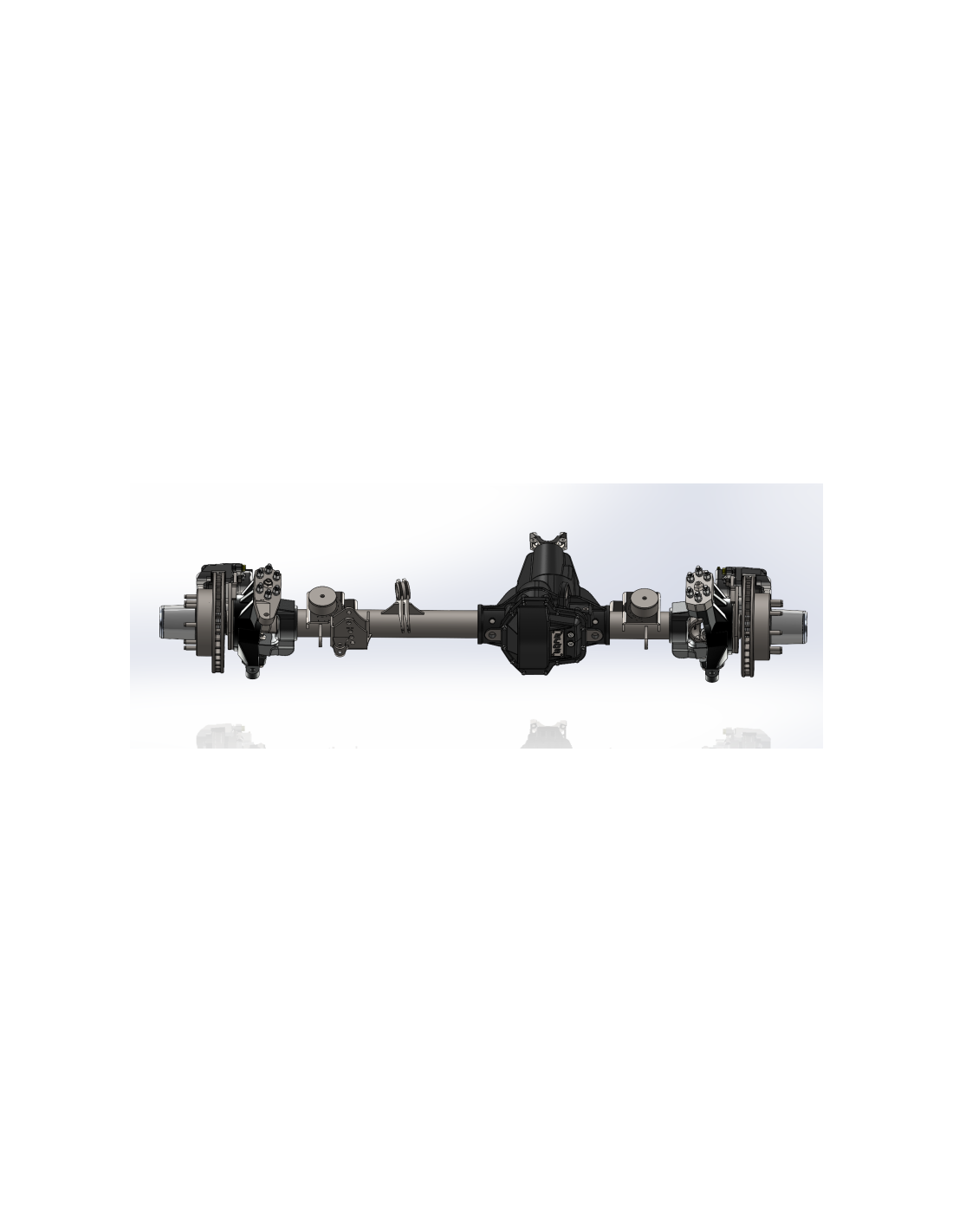

ECGS D60HP KINGPIN FRONT AXLE - JK

The ECGS D60HP features our own Proprietary High Clearance casting. We then use Chevy style outers to complete this housing.

The base price includes:

• ECGS HP60 ROLLER ASSEMBLY WITH COVER

• 3.5" x .500" wall DOM Tubes Standard, Available upgrade to 4" x 3/8" (.375") or 4" x 1/2 (.500") wall DOM below.

• 1/4" Plate Stock JK Brackets. Bolt-In Ready.

• ECGS 35 Spline 1480 Joint Chevy Kingpin Wheel End Kit.

• This is a rolling housing built hub to hub with brakes. Axle shafts not included. When WMS is selected shafts are added.

Choose your options below to outfit your axle the way you want it built. If you don't see an option listed feel free to contact us and we can provide an estimate.

Add carrier:

• ARB Air Locker

• Eaton E-Locker

• Eaton True-Trac

• Steel Spool

• Open Carrier

• Grip-Pro

• OX Locker

Select Gear Ratio:

Includes,

• Master Install Kit

• Ring And Pinion

• Professional Gear Set Up

Select WMS:

We have several popular options for wheel mounting surface (WMS). 70", 72", 73.5", and 75". Please call for Custom WMS or Pinion offset. Axle shafts included when you select WMS.

Select Locking hubs:

• 35 Spline Hardcore Locking Hubs

• ECGS 35 spline Slug kit

One Ton OE Big Brake Kit Includes:

• Two Piston Calipers

• Brake Pads

• Two 13" Rotors

Our OE brake kit is based on A 2010 Chevy 3500
