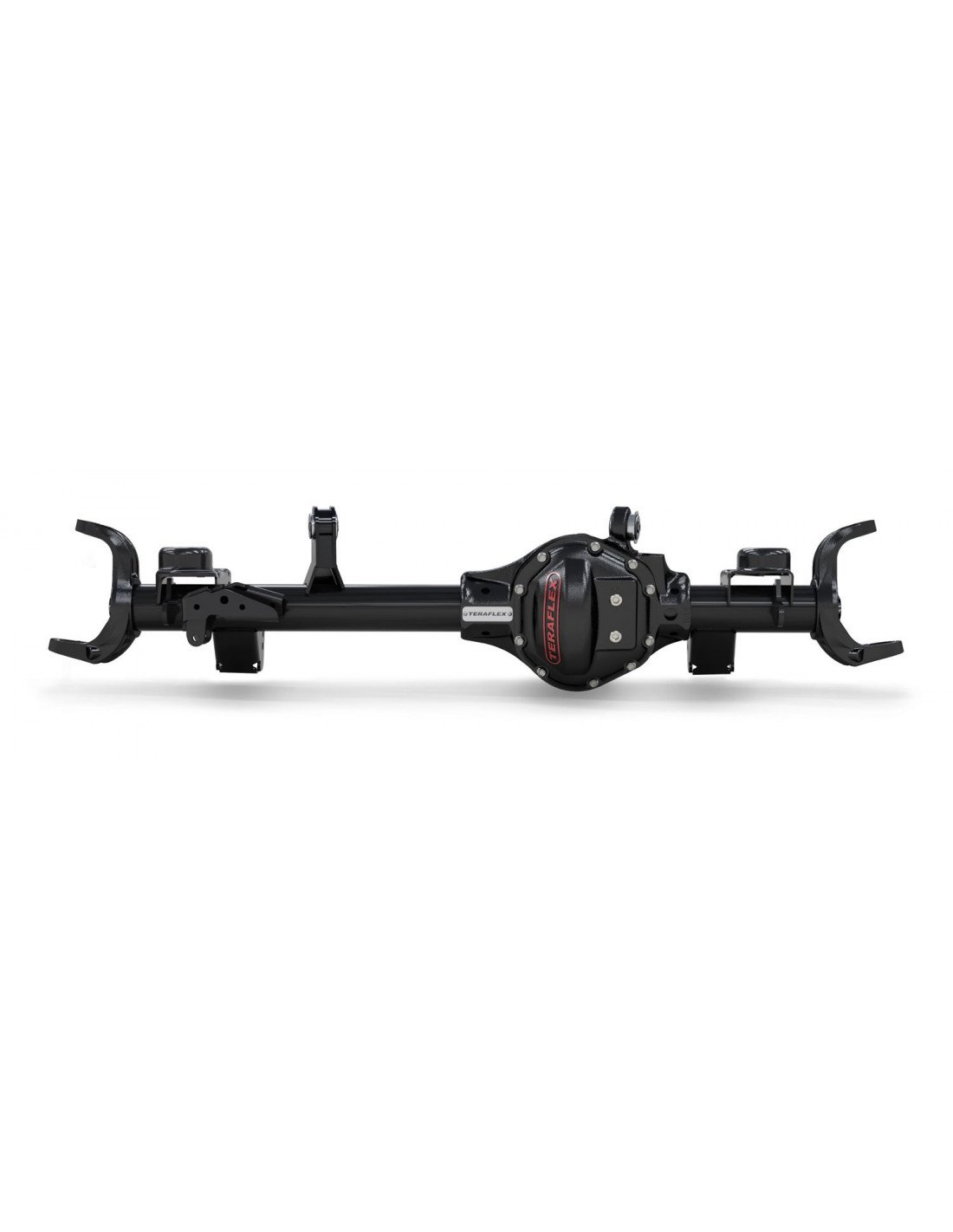

JEEP JK 0-3 INCH LIFT FRONT TERA44 R44 RUBICON REPLACEMENT AXLE HOUSING W/ 0.5 INCH WALL AXLE TUBE 07-18 WRANGLER JK TERAFLEX

TeraFlex JK Front Tera44 Replacement Axle Housings include a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles. Pre-installed inner seals and upper control arm bushings make the upgrade seamless.

Simply transfer your existing internal components (differential, ring and pinion, and axle shafts), outer components (knuckle assembly and ball joints), axle assembly, unit bearings, brakes and sensors to the new housing.

TeraFlex heavy-duty JK Front Tera44 Replacement Axle Housings are perfect for replacing bent, broken, or damaged front axles in JK Wrangler and Rubicon vehicles. Can also be used as a direct bolt-on upgrade for JK Wrangler owners looking to beef up the front axle's weak areas.
Details:

• SKU: 3544052
• Lift Height: 0-3 Inch
• Width: 67 Inches WMS-WMS (stock)
• Axle Tube: 3.25 Inch x 0.5 Inch

Fits:

• JK Wrangler (2-door) - front
• JKU Wrangler Unlimited (4-door) - front

Features and Benifits:

• 3.25 inch O.D. x 0.5 inch wall axle tube increases strength to resist bending and torsion w/ minimal weight increase
• Pre-installed inner axle seals
• Forged HD inner knuckles w/ greater upper and lower section strength
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover
• Asymmetric housing design, for extra-long tube side strength
• Smooth radius bottom design to glide over rocks and obstacles
• Integrated lower flexarm skid plates
• Bottom oil drain hole for simple fluid changes
• Premium UV protected triple-stage powdercoat process for superior corrosion resistance
• 1/4 inch thick CNC laser cut axle brackets for extreme strength
• Integrated factory location upper control arm mount
• Pre-installed upper control arm bushings
• Reinforced front track bar mount (ties into spring pad) for greater strength
• Proper pinion angle for Lifted JK applications
• Pre-tapped hole on spring perch for bump stop extensions
• Pre-drilled holes for limit straps and lower spring retainers
• Retains all JK ESP, ABS, and speedometer sensor capability
• Compatible with factory JK Rubicon locker
• 100 percent engineered, designed, and built in the USA
• 100 percent new components
• 1-Year / Unlimited Mileage Warranty

Notes:

• The R44 axle works with factory axle shafts and Rubicon locker (P/N 68017176AA) or (OX D44-JKR-30) locker. The ARB RD157 locker or the OX D44-JKR-30 locker can be used with new 35 spline axle shafts.
• Install Time: 8 Hours (includes gear setup)
• This is a very heavy item and must be shipped by freight truck
