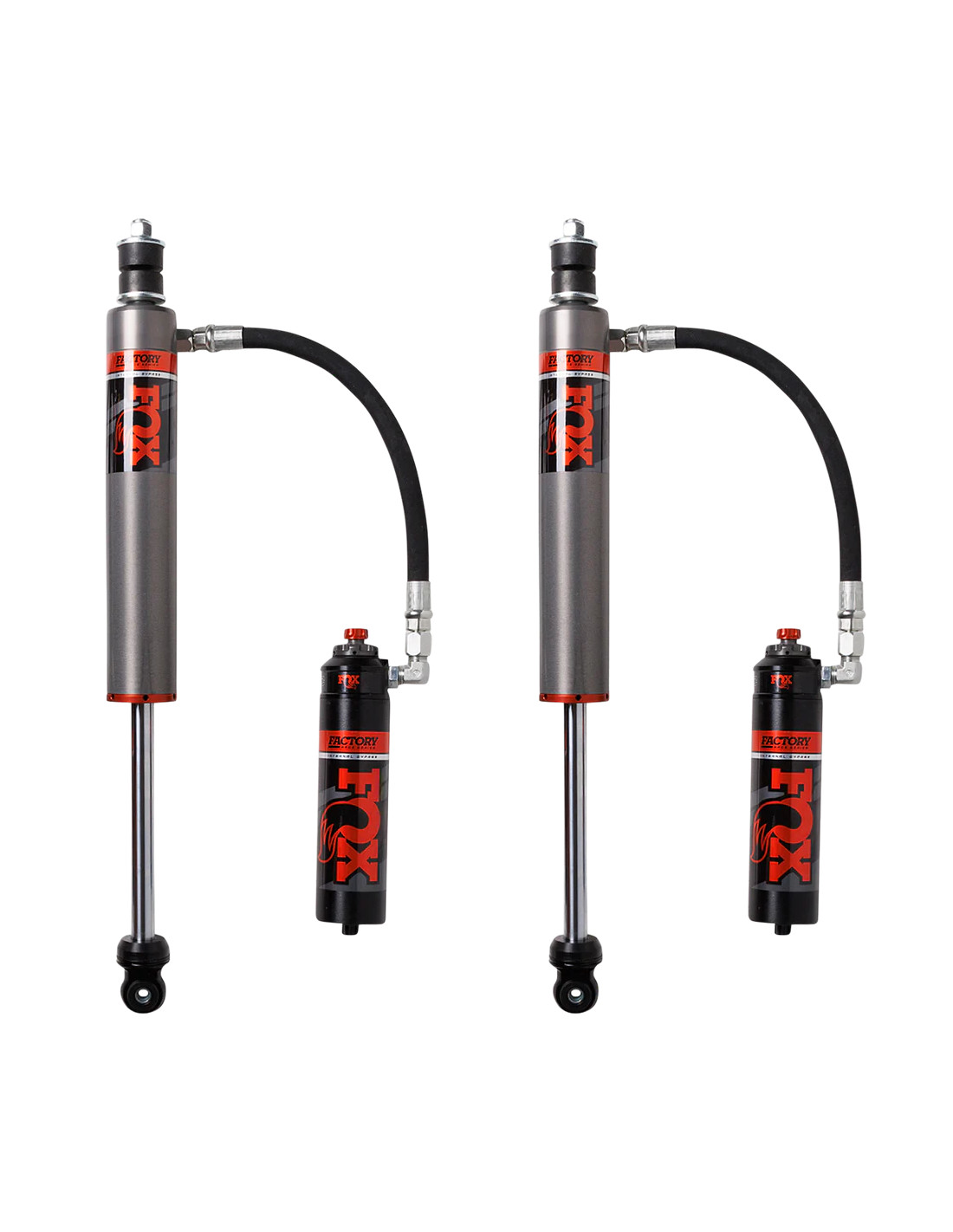

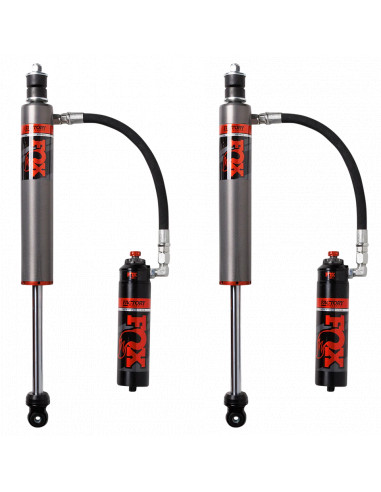

FOX 883-26-145 FACTORY RACE 2.5 REAR 2" A 3" 4RUN 120 150 FJ

The FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota deliver velocity- and position-sensitive damping, Dual Speed Compression (DSC) adjustment, and high-speed, race-ready performance in a complete vehicle-specific bolt-on kit.

FOX’s patented Internal Bypass technology creates multiple internal damping zones, resulting in a smooth, confident ride while significantly increasing damping capacity in rough and aggressive terrain. Internal bypass shocks progressively build damping force to:

• Control hard bottom-outs

• Prevent harsh top-outs

• Provide initial catch and stability during landings

Within the ride zone, shock fluid bypasses the main piston through a series of internal bleed ports. As the shock compresses or rebounds beyond the ride zone, these ports close, forcing oil through the main piston to deliver increased and controlled damping force.

The 2.5-inch impact-extruded and CNC-machined 6061-T6 aluminum body, finished with Type III hard anodizing, provides excellent resistance to corrosion and wear. An external reservoir increases oil capacity and contains an internal floating piston (IFP) that separates shock oil from the nitrogen charge, ensuring consistent damping performance and reduced heat buildup during high-speed use.

Fine-tune your 4Runner for vehicle load, terrain, and driving style using the DSC adjuster, and experience the stability, control, and confidence FOX Internal Bypass shocks deliver at speed in demanding environments.

Key Features

• 2.5” impact-extruded and CNC-machined 6061-T6 aluminum body, Type III hard anodized

• Patented Internal Bypass shock design

• Application-specific coil springs

• 7/8” hard-chromed steel shaft

• Vehicle-specific tuning for maximum performance

• Redundant sealing system: main seal, wiper seal, scraper seal

• External reservoir with Dual Speed Compression (DSC) adjuster

Technical Specifications

• Part Number: 883-26-145

• Series: Factory Race

• Travel: 9.29”

• Extended Length: 24.80”

• Compressed Length: 15.51”

• Upper Mount: Stem Top

• Lower Mount: Eyelet
