Fox Performance Series 2.0 IFP Coilover Kit + Rear Shocks with Extended Shackles

Improving driving comfort

The Fox Performance Series 2.0 IFP shocks feature the latest technology to transform the performance of your Truck or SUV. Using race-proven damping control, they deliver a comfortable on-road ride and predictable off-road handling, even in the toughest conditions.

The precision 6061-T6 clear anodized aluminum body increases cooling capacity and will never rust. Inside, the Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure nitrogen chamber, eliminating oil aeration for maximum performance.

Adjustable Coilovers

• Locking spring preload rings allow easy ride height and preload adjustment.

• Fitted with a high-quality racing coil for the optimal spring rate.

• Bolt-on installation, designed to level your truck front-to-rear.

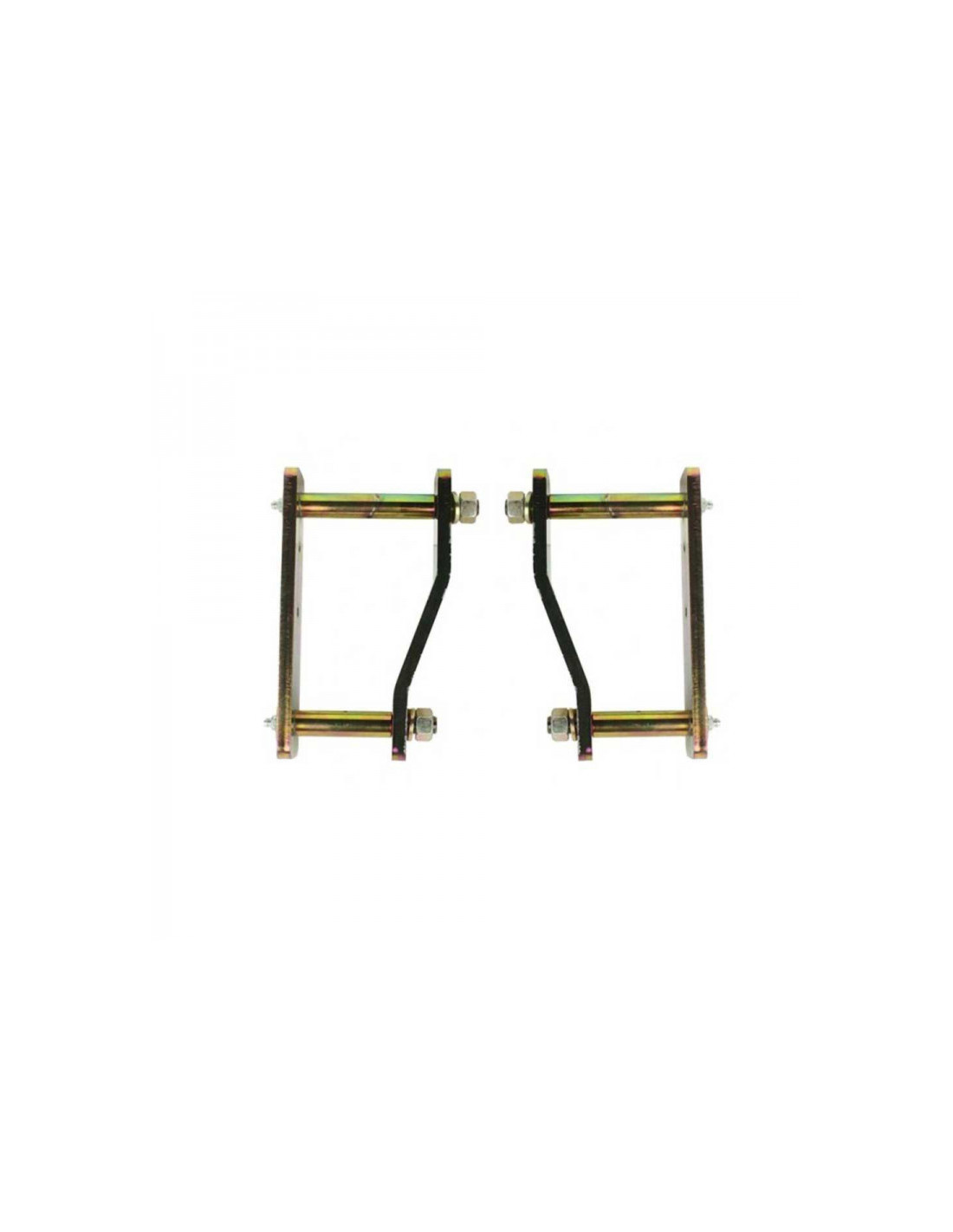

Extended Shackles

High-quality extended shackles provide an easy and economical way to lift the rear of your leaf-sprung vehicle, improving clearance for oversized tires while maintaining durability and ride comfort.

Specifications

Professional lift kit:

• Designed specifically for your vehicle

• Maintains correct driving characteristics with lift

• Optimized for both on-road and off-road performance

• Improves overall handling of lifted vehicles

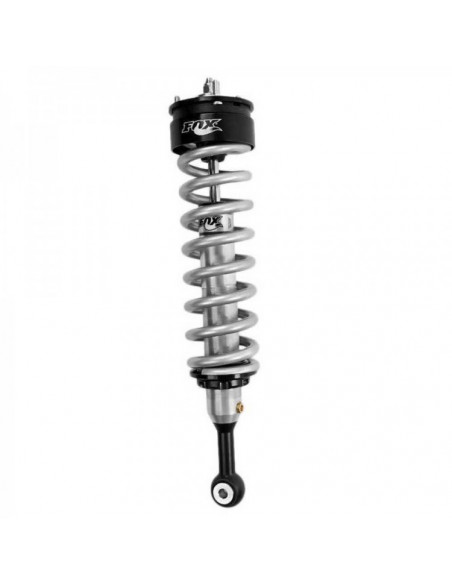

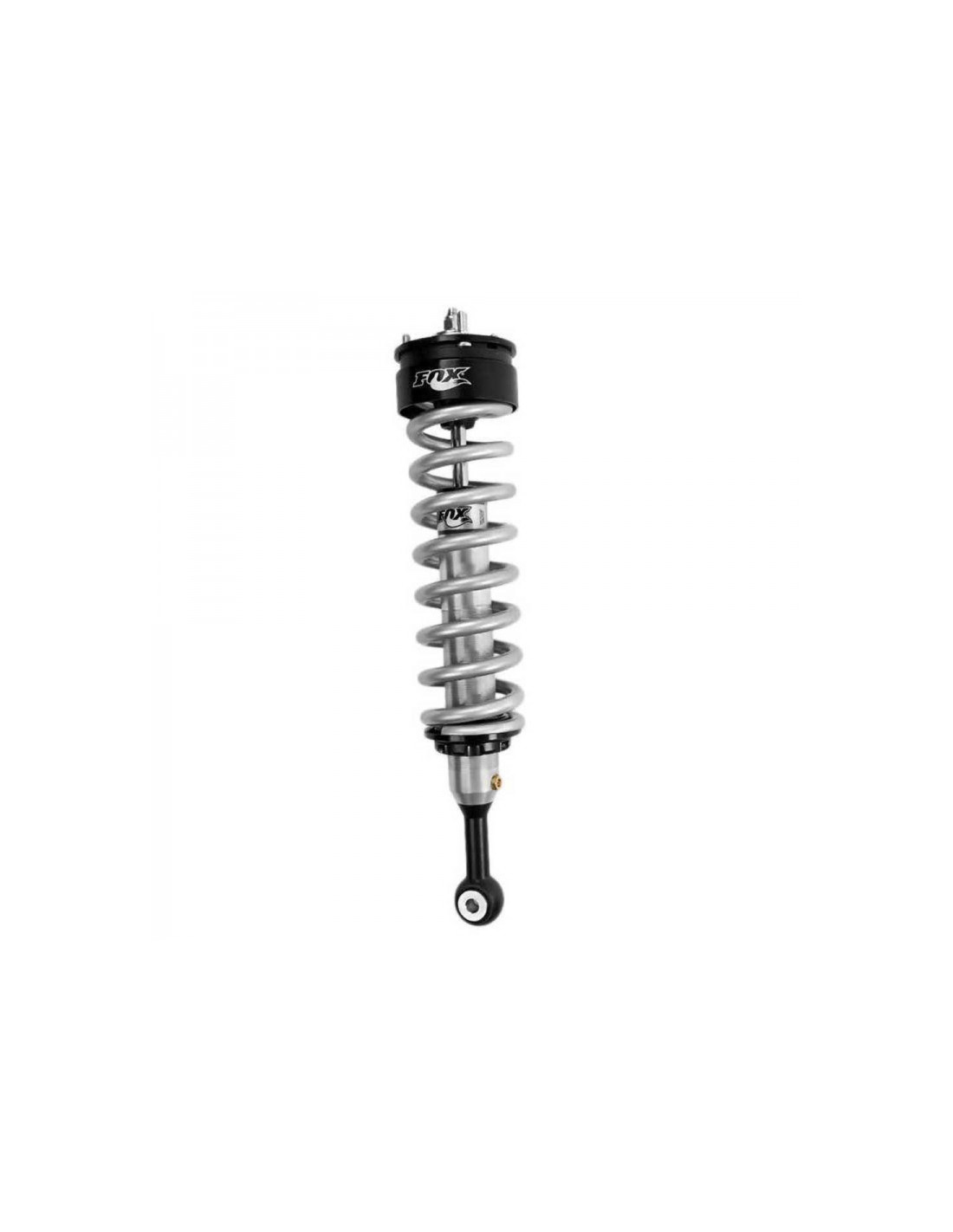

Front Coilover Shock Specs

• Body: 2.0" impact-extruded & CNC-machined 6061-T6 clear anodized aluminum

• Design: Internal IFP mono-tube

• Components: Black-anodized 6061-T6 billet aluminum

• Shaft: 5/8" hard chrome plated heat-treated alloy steel

• Piston: High-flow, race-developed design

• Valving: Application-specific

• Seals: Redundant triple pack (main, wiper, scraper)

• Oil: JM92 Advanced Suspension Fluid for consistent performance

• Bearing: Heavy-duty spherical

• Adjustment: Preload ring (ride height)

• Dimensions:

  • Travel: 21.19"

  • Compressed: 16.60"

  • Extended: 24.59"

• Mounts: Top – OEM / Bottom – Eyelet

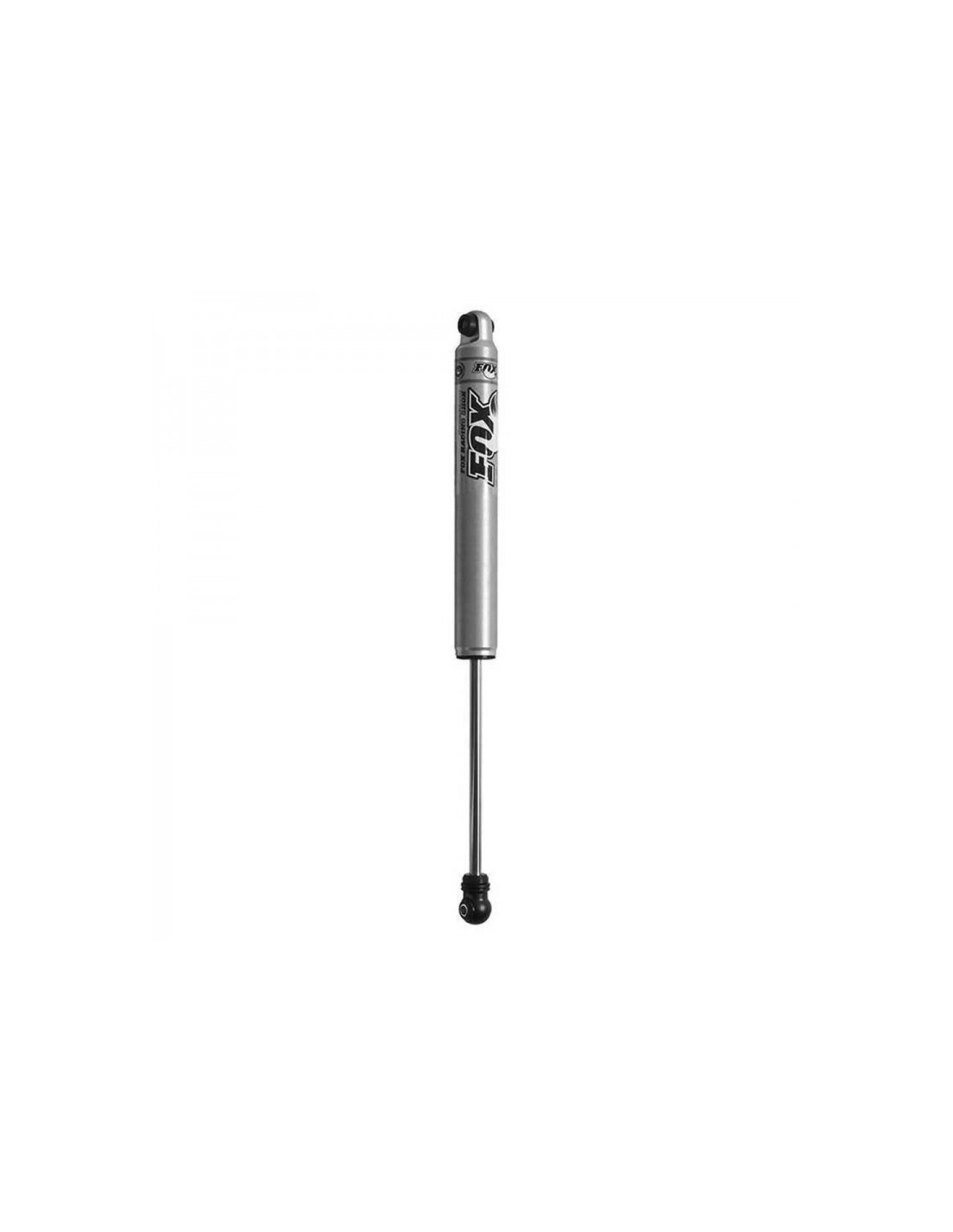

Rear Shock Specs

• Body: 2.0" impact-extruded & CNC-machined 6061-T6 clear anodized aluminum

• Design: Internal IFP mono-tube

• Components: Black-anodized 6061-T6 billet aluminum

• Shaft: 5/8" hard chrome plated heat-treated alloy steel

• Piston: High-flow race-developed design

• Valving: Application-specific

• Seals: Redundant triple pack

• Oil: JM92 Advanced Suspension Fluid

• Bushings: Quiet nitrile rubber for improved articulation

• Dimensions:

  • Extended: 24.82"

  • Compressed: 15.70"

  • Travel: 9.12"

• Mounts: Top – Eyelet / Bottom – Eyelet

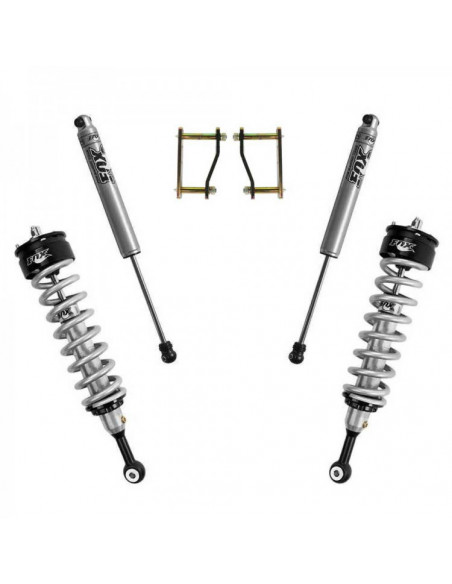

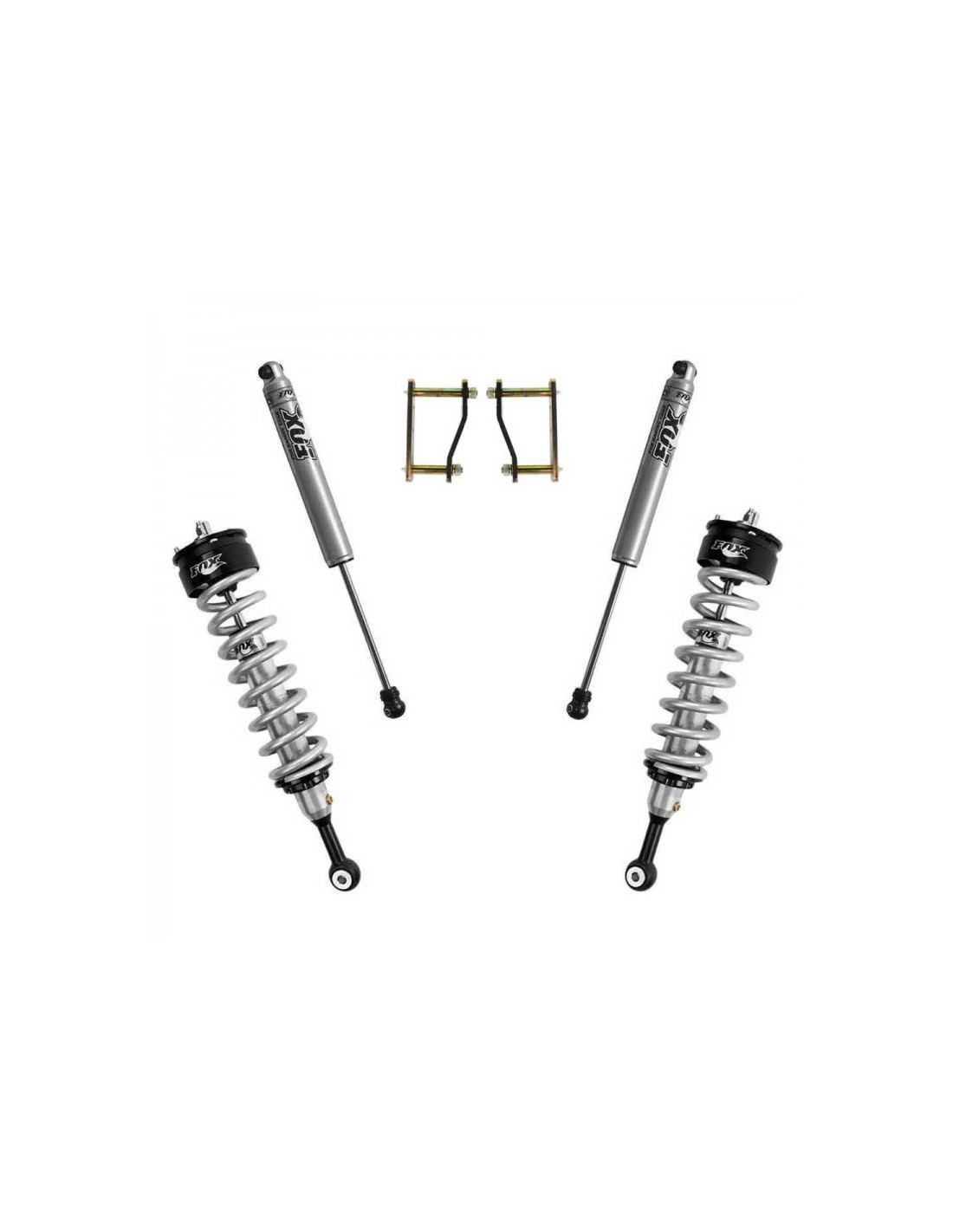

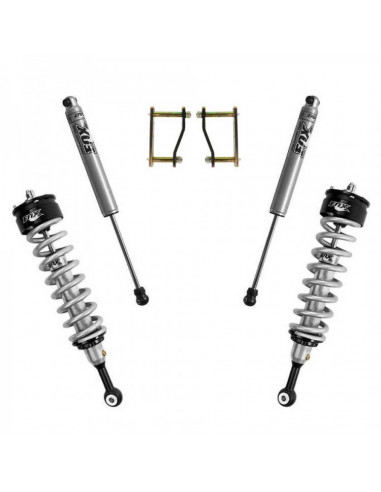

In the box

✔️ (2) Front Coilover IFP 2.0 Shocks
✔️ (2) Rear IFP 2.0 Shocks
✔️ Extended rear shackles

Notes

⚠️ For vehicles equipped with xenon headlight leveling sensor, modification to the shackle bracket is required.
