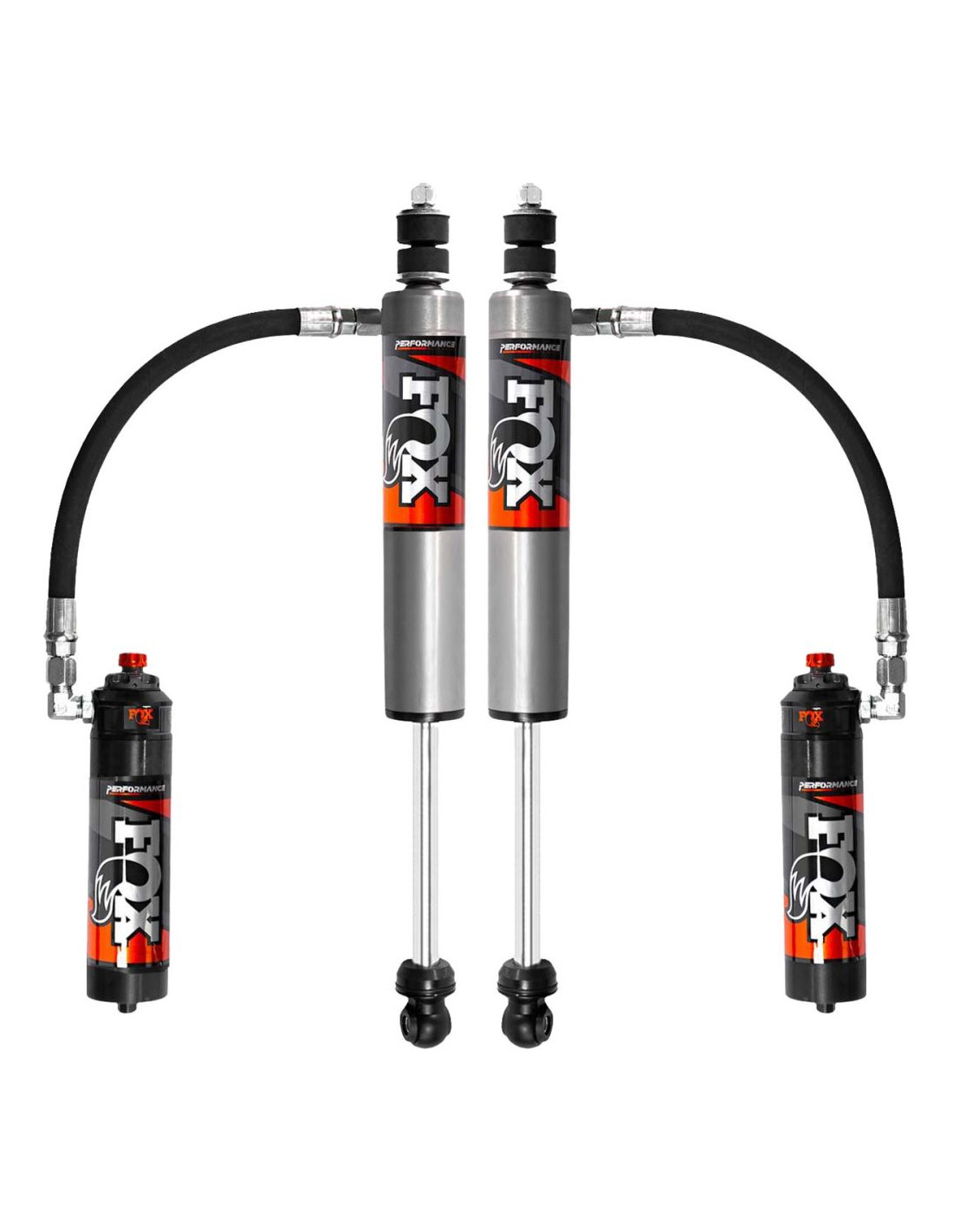

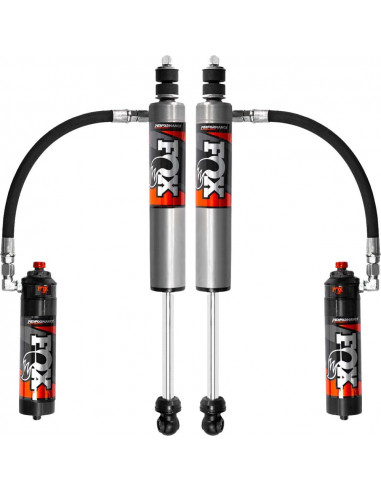

FOX 883-26-115 ELITE 2.5 REAR 0" A 1.5" 4RUN 120 150 FJ

Superior Ride Comfort

The FOX Performance Elite 2.5 shocks deliver a significant improvement in vehicle handling and control both on-road and during demanding off-road use. Inspired by high-performance shock technology found in professional motorsports, these shocks are built to satisfy even the most demanding off-road enthusiasts. Experience exceptional performance and unmatched vehicle control in any terrain.

Innovative Technology

The adjustable external reservoir increases oil and gas capacity while allowing you to fine-tune the shock’s performance characteristics to match your driving style. It also provides a distinctive off-road appearance.

The DSC (Dual Speed Compression) adjustment system offers precise damping control and enhanced comfort on tarmac, while providing the ideal setup for aggressive off-road driving. With two independent adjustment knobs—one for low-speed and one for high-speed compression—you can dial in the dampers to better absorb varying terrain.

Specifications:

• DSC – Dual Speed Compression

• Body: 2.5” impact-extruded and CNC-machined 6061-T6 aluminum, hard-anodized for corrosion resistance

• Reservoir: External reservoir separates shock oil from high-pressure nitrogen

• Finish: Hard-anodized for long-term durability

• Components: CNC-machined 6061-T6 billet aluminum, black-anodized

• Shaft: 7/8” hard chrome-plated, heat-treated alloy steel

• Piston: Race-developed high-flow piston design

• Seals: Redundant sealing system with main seal, wiper seal, and scraper seal

• Oil: JM92 Advanced Suspension Fluid for consistent performance in variable temperatures

• Adjuster: DSC

Dimensions:

• Extended Length: 22.98"

• Compressed Length: 14.50"

• Travel: 8.48"
