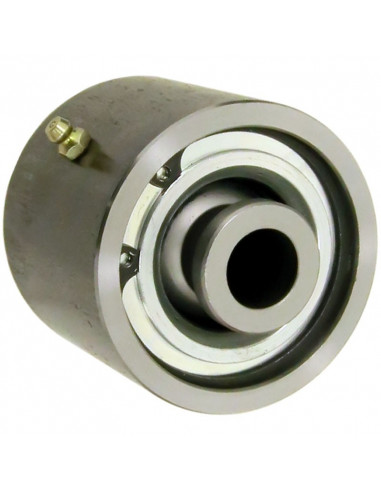

JOHNNY JOINT ROD END 3 INCH WELD-ON CHROMOLY BARREL 3.250 INCH X 0.750 INCH BALL EXTERNALLY GREASED EACH ROCKJOCK 4X4

RockJock's weld-on chromoly Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, chromoly side washers and a snap ring.

The outer shell is weldable .180 Inch wall machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint is a 3 Inch o.d. and features a 3.250 Inch mounting width and a .750 Inch thru bolt hole.

Details:

• Johnny Joint Rod End
• 3 Inch
• Weld-On
• Chromoly Barrel
• 3.250 Inch X 0.750 Inch Ball
• Externally Greased
• Each
