Fox Performance Series 2.0 IFP Coilover Kit + Rear Shocks with Reinforced Shackles

Improve your driving comfort and performance

The Fox Performance Series 2.0 IFP shocks feature the latest technology to transform the performance of your Truck or SUV. With race-proven damping control, they deliver a comfortable on-road ride and predictable off-road handling, even in the toughest conditions.

The 6061-T6 clear anodized aluminum body increases cooling capacity and will never rust. Inside, the Internal Floating Piston (IFP) design separates shock oil from the high-pressure nitrogen chamber, preventing aeration and ensuring maximum performance.

Adjustable Front Coilovers

• Equipped with locking spring preload rings for easy ride height adjustment.

• Fitted with a performance racing coil chosen to provide the optimal spring rate.

• Bolt-on installation with no modifications required, designed to level the truck front-to-rear.

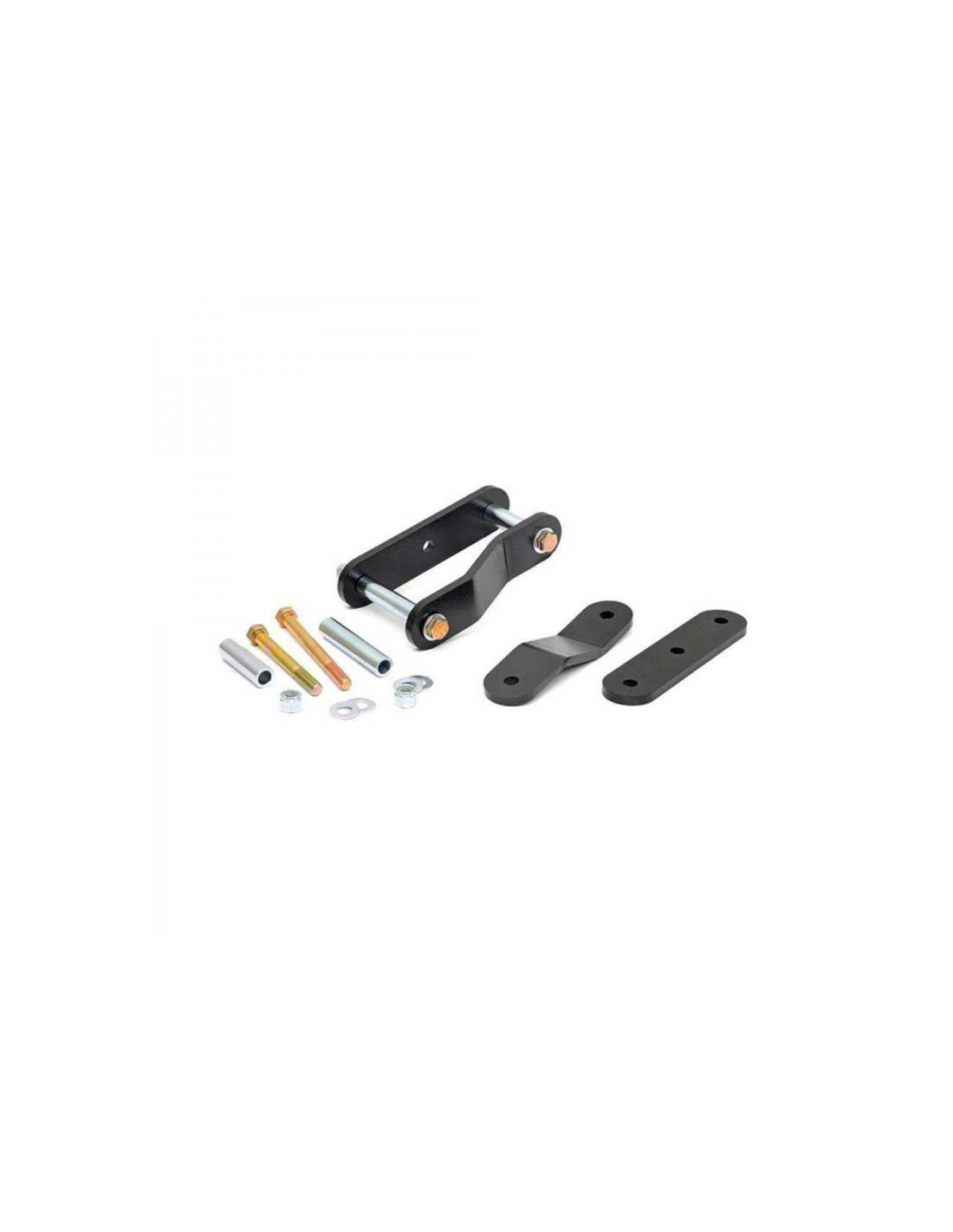

Reinforced Rear Shackles

This kit also includes a set of 3/8" steel shackles, engineered to:

• Maintain factory ride quality.

• Reduce driveline vibrations.

• Provide lift height effectively and reliably.

Their heavy-duty design with powder coat finish is built to withstand the elements. The kit also includes DOM tubed sleeves and Grade 8 hardware, offering unmatched strength where most competitors fail.

Technical Specifications

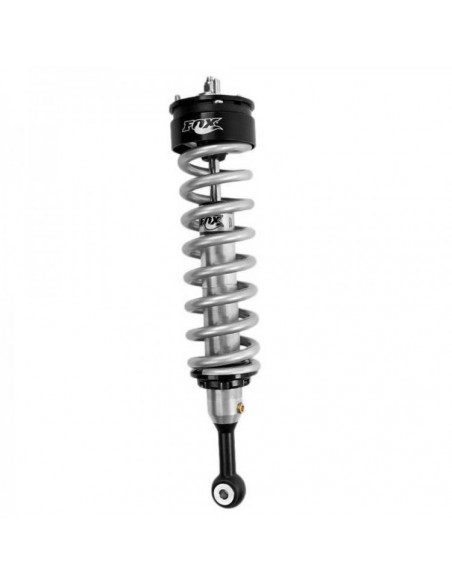

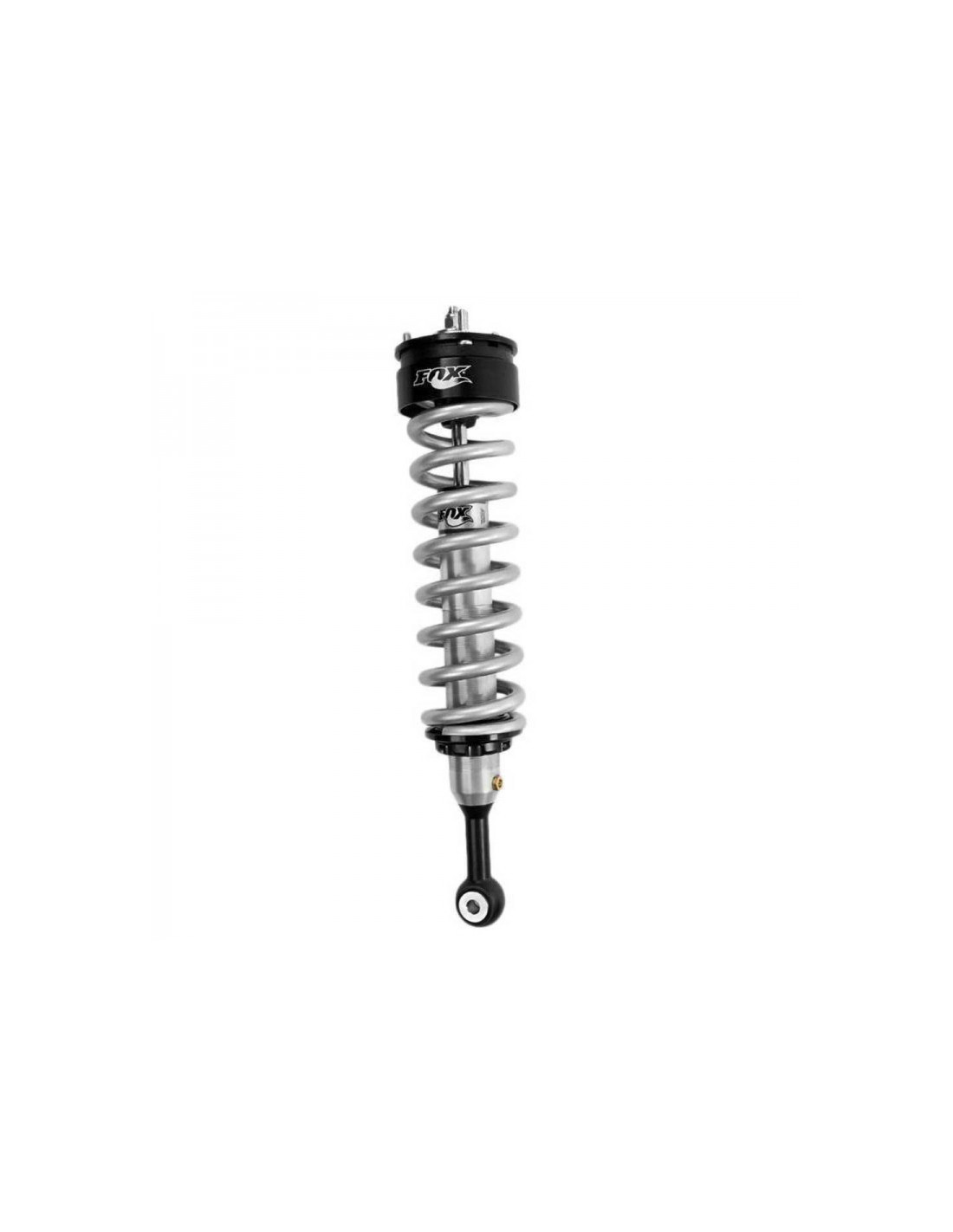

Front Coilover Shocks (IFP 2.0)

• Body: CNC-machined 6061-T6 aluminum, clear anodized, 2.0"

• Design: Mono-tube with Internal Floating Piston (IFP)

• Shaft: 5/8" heat-treated alloy steel, hard chrome plated

• Piston: Race-developed high-flow design

• Seals: Redundant triple pack (main, scraper, wiper)

• Oil: JM92 Advanced Suspension Fluid

• Adjustment: Preload ring for ride height

• Dimensions:

  • Travel: 15.69"

  • Compressed: 11.50"

  • Extended: 4.19"

• Mounts: Top – OEM / Bottom – Eyelet

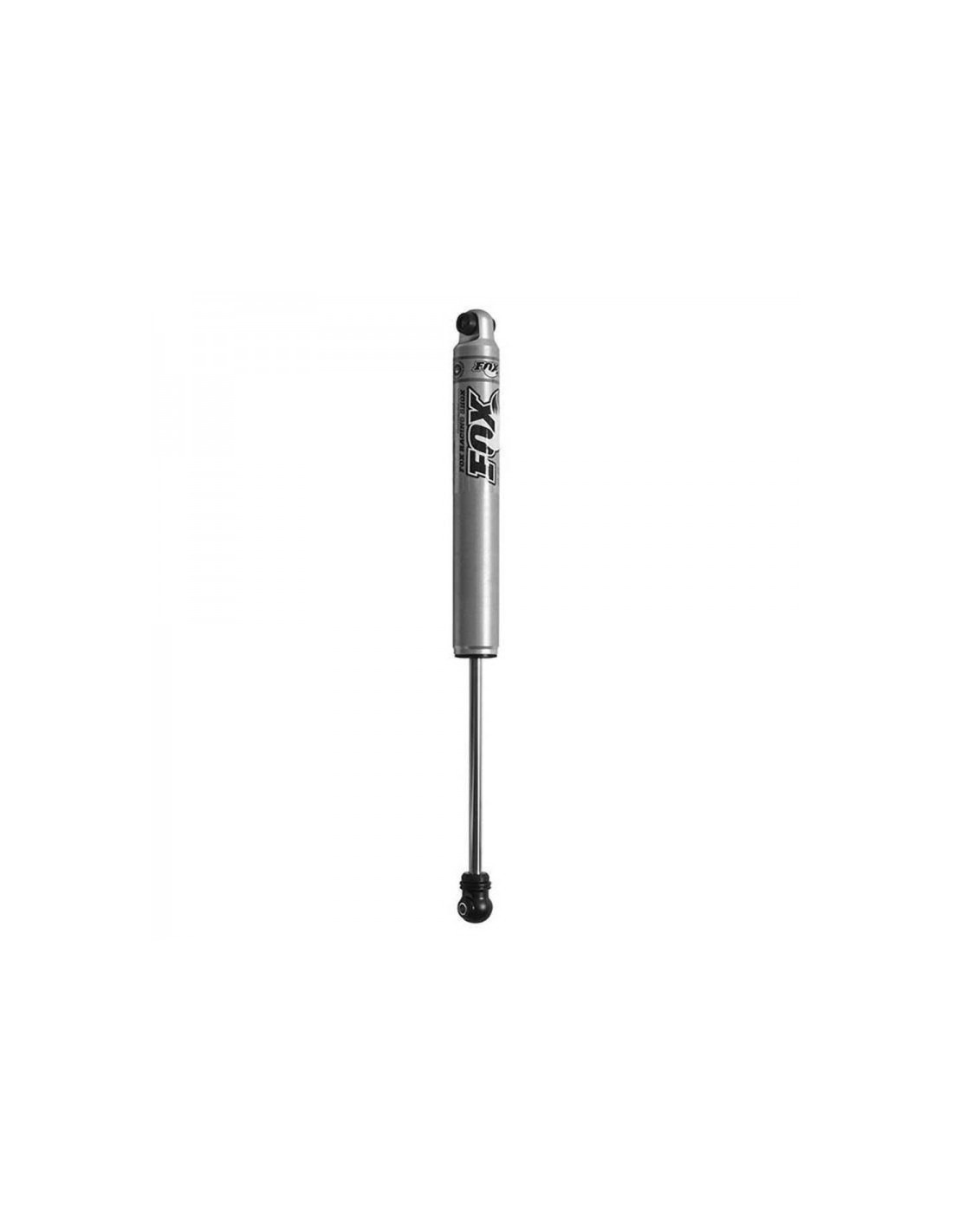

Rear Shocks (IFP 2.0)

• Body: CNC-machined 6061-T6 aluminum, clear anodized, 2.0"

• Design: Mono-tube IFP

• Shaft: 5/8" heat-treated alloy steel, hard chrome plated

• Piston: High-flow race design

• Seals: Redundant triple pack

• Oil: JM92 Advanced Suspension Fluid

• Bushings: Quiet nitrile rubber for improved articulation

• Dimensions:

  • Extended: 21.62"

  • Compressed: 14.00"

  • Travel: 7.62"

• Mounts: Top – Eyelet / Bottom – Eyelet

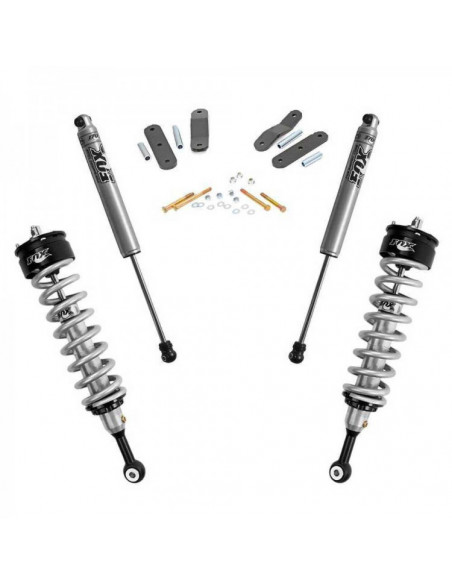

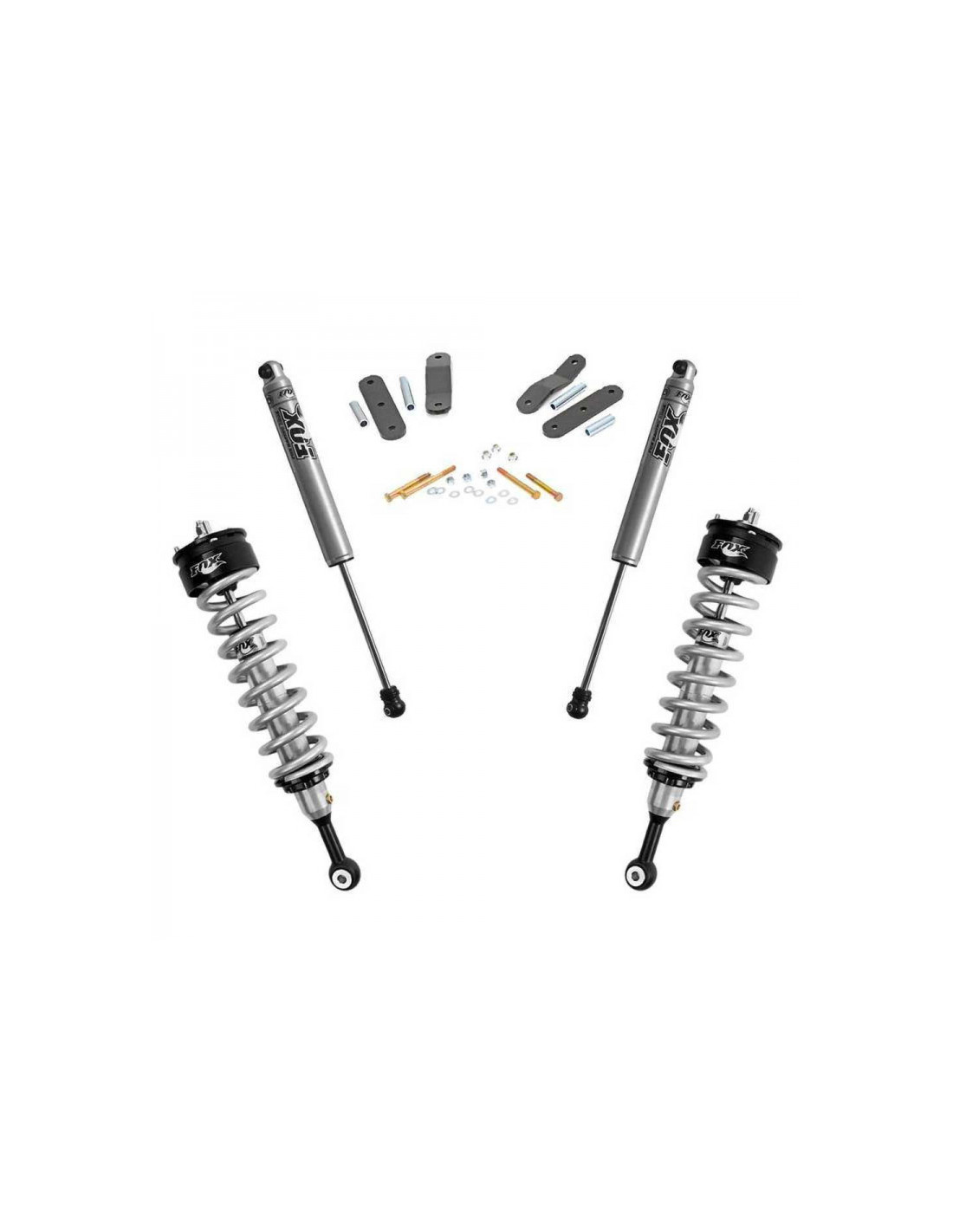

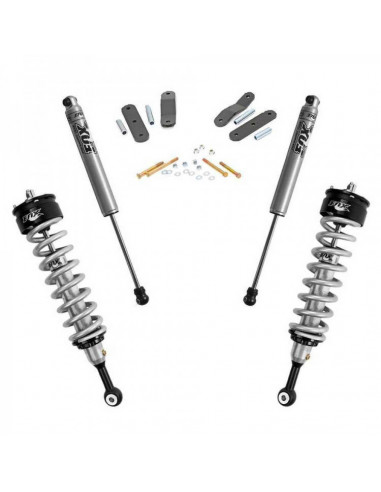

What’s in the box

✔️ (2) Front Coilover IFP 2.0 Shocks
✔️ (2) Rear IFP 2.0 Shocks
✔️ Reinforced rear shackles with DOM sleeves and Grade 8 hardware

👉 In short: This kit delivers superior ride comfort on-road, reliable off-road performance, and the legendary Fox Racing durability in every component.
