ADAMS DRIVESHAFT EXTREME DUTY FRONT DRIVESHAFT 1310 JEEP WRANGLER JL

Adams Driveshaft Front Extreme Duty 1310 CV Driveshaft — Jeep Wrangler JL

The Adams Driveshaft Extreme Duty Series front driveshaft is the ultimate driveline upgrade for your Jeep Wrangler JL. Hand-built in the USA by one of the most respected names in the off-road industry, this driveshaft is designed, tested and validated on the Adams team's own Jeeps to make sure it can take real-world trail abuse.

Featuring 2" × 0.120" DOM tubing —twice as strong as the factory tube— solid non-greasable u-joints and components exclusively from Spicer and Neapco, this driveshaft delivers bulletproof reliability without compromising on ease of installation.

Application

• Jeep Wrangler JL Rubicon, Sport and Sahara, 2-door or 4-door, from 2018 to present.
• Suitable for tyres up to 37". For larger tyres we recommend the 1350 Solid Series.
• Compatible with lifts up to 6". Beyond that, working angles may become too severe.
• NOT compatible with the 392 model. Please contact us if you have this version.

Technical features

• Part number: ASDJL-1310F-S
• 2" × 0.120" DOM tubing, twice as strong as OEM, with optimised clearance so it won't contact the exhaust or crossmember at full droop.
• Full-spline Slip n Stub, significantly longer than many competitors offer.
• Solid non-greasable u-joints — the strongest on the market.
• Heavy Duty flange that mates directly to your OEM pinion flange: easy installation without disturbing the differential crush sleeve.
• Grade 10 CV bolts (vs. Grade 8 on competitor shafts) with small heads for easier installation. Loctite packet included.
• Gloss black show-quality finish.

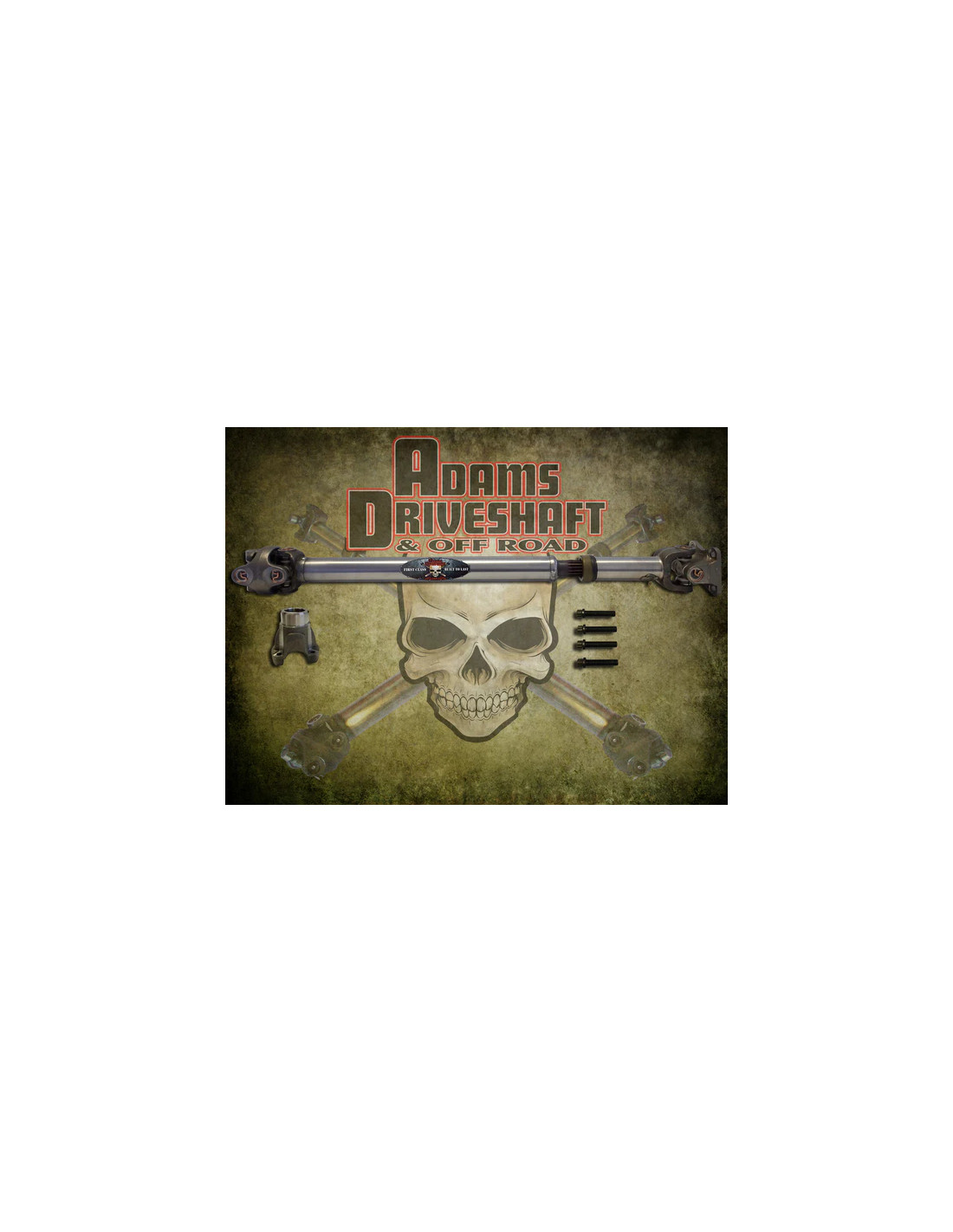

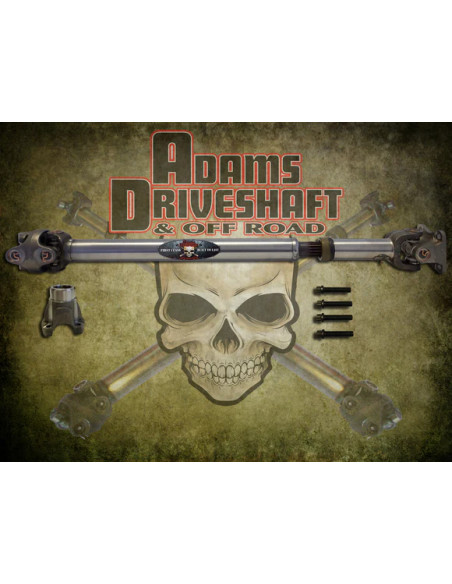

What's in the box

• 1 × Front 1310 CV Extreme Duty driveshaft with solid u-joints and OEM-style flange.
• 1 × American-made front 1310 transfer case output yoke.
• 4 × Grade 10 CV bolts.
• 1 × Adams Driveshaft T-shirt.

Important note on working angles

Jeep changed the front driveshaft angles on the JL and JT models. If your Jeep runs an aftermarket differential or axle kit that eliminates the FAD (Front Axle Disconnect), the driveshaft will spin full-time. This can cause vibrations and/or premature u-joint and CV wear due to working angles. Please contact us before ordering if this is your setup.

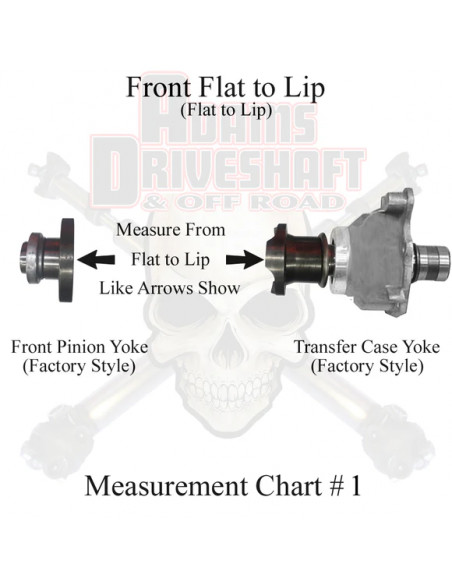

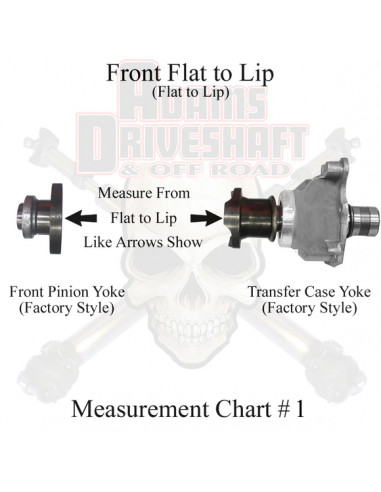

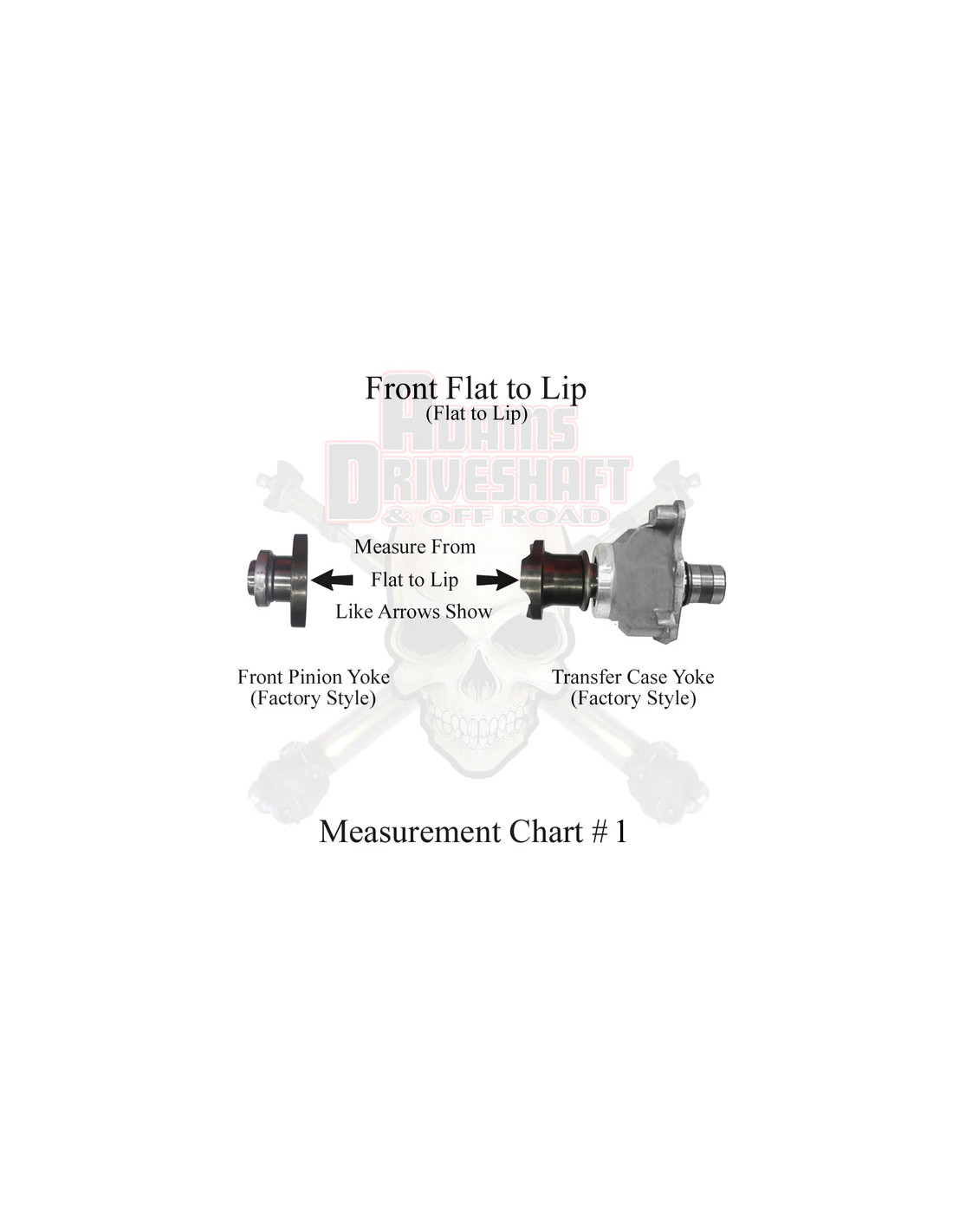

Do we need a measurement from you?

We already know most JL dimensions, but if your Jeep has any of the following configurations we'll need you to send us the exact measurement after purchase:

• Coilover suspension.
• Rock Krawler lift kit.
• Lift taller than 4.5".
• Non-original transfer case.
• Non-original differential.

Get in touch with us after placing your order and we'll explain how to take the measurement.

Warranty

Lifetime warranty on welds and tubing against failure caused by torque. All other components are covered by a 1-year warranty against manufacturing defects. U-joints, CV kit and Slip n Stub are wear items and must be greased every 3 months or 3,000 miles (whichever comes first). Warranty does not cover failures caused by incorrect working angles or improper maintenance.
